Editor Computers at FEL2022

You can use any computer that is available, but use the same computer throughout the conference. All of the software settings and preferences should already be set, but if you thinks something's wrong, please contact the IT manager, Stefano Deiuri.

The first time that you start a paper processing session you'll find a folder on the Desktop named PO. If this folder does not exist, please create it with the same name. This is the only folder that is backed up, so please 'DO NOT RENAME OR MOVE IT'. Use this folder for all the papers you are working on. There is also a folder named DONE inside PO (again, if missing, go and create it). When you are done processing a paper (successfully or not, it doesn't matter), create a subfolder under the DONE folder and name it according to its paper code. Move all of that paper's files into the new subfolder.

Example When working on paper MOP99, all its files will stay in

(i.e., the PO folder on your desktop). When you're done, all the processed files of that paper will be moved to

Editor Access

FEL2022 is using, for the very first time, the JACoW Indico server.
Login with your JACoW account at https://indico.jacow.org/e/FEL2022

A Few FEL2022 Specifics

Program Codes and Page Limits

First 2 letters (Day)

3rd (Session slot/type)

4th (Type of Oral Presentation - not applicable to posters)

Final digit(s)

The program code finishes with one or two digits indicating their order (orals) or board (posters).

Quick programme reference: https://www.fel2022.org/programme/scientific-programme

Useful material and links

Handouts

• Editor Quick Start Guide.pdf (Word version )
• Editor Quality Matrix.pdf
• Useful Short Cut Keys

LaTeX tutorials

• LaTeX Editing, Basic
• LaTeX Editing, Advanced

Title Case: How-To

Writing a good title in Title Case format is not so easy. Remember that acronyms and specifically-written names of machines/institutes must not be changed from their format.

To quickly change a wrongly formatted title you can use https://titlecaseconverter.com/ with the Wikipedia Manual of Style.

Paper Requirements

• Current JACoW Template (Word)
• All JACoW paper templates are in the "for Authors" section.
  They are hosted at our Github and you can easily get them all in a useful ZIP file

Paper Sizes and Measurements

Paper Sizes

Distilled Page Sizes

A4 on A4

A4 on US letter

US letter on US letter

US letter on A4

Paper Measurements Cheat-Sheet

The purpose of this cheat-sheet is to help editors finding the correct positions for alignment of text and picture blocks in JACoW papers. The first page show all the measurements; the second page provides a short documentation on usage.

This is cheat-sheet version 1.4 — Nov 2013

Editing tips & tricks

• Tips and Tricks for Processing
• Common Author Oversights

CatScan Editor for Authors & Editors

The CatScan editor can be used by both authors and editors to check a DOCX or LaTeX document.

This tool in particular for Word has a rich suite of tests that it applies to the scanned document to give you guidance for corrections. To use select either the Word of LaTeX screen, select the file, followed by selecting the conference and then click scan.

The advantage of this tool is that it can be used by both the author and the editor to do initial checking of documents. Being web based it can be used at anytime, and by any number of people.

NOTE:

1. This does not remove the need for editors to check documents, this must still be done as it is a “best effort” editor which can only identify to the ability of the algorithms.
2. Old Word DOC files will not scan, Word documents must be DOCX.

CatScan Editor User Guide

http://scan.jacow.org

JACoW Reference Search & Generatation Tool

This tool contains a complete database of all JACoW papers which have been published on JACoW.org, and additional can included papers which have been scheduled in an upcoming conference. With this tool you can quickly search and generate Word, LaTeX, and BibTeX references which can be copy and pasted into a source document. A full user guide can be found here: Referenec Search and Generation User Guide

https://refs.jacow.org

Editing a paper

First of all you need to assign yourself a paper. Follow these instructions to do so in Indico. Remember to select the kind of paper you want to process according to your skills (Word, LaTeX, LibreOffice...)

Download the files from Indico. Start with the latest version of the PDF and do all the checks and fixes needed (explained in more detail here below).

If the result is compliant with JACoW quality you can upload to Indico and stick a GREEN dot.

Otherwise, you need to work on the source files. In this case download all the files (by the useful ZIP) and work on them.

Re-create the PDF and do all the checks again.

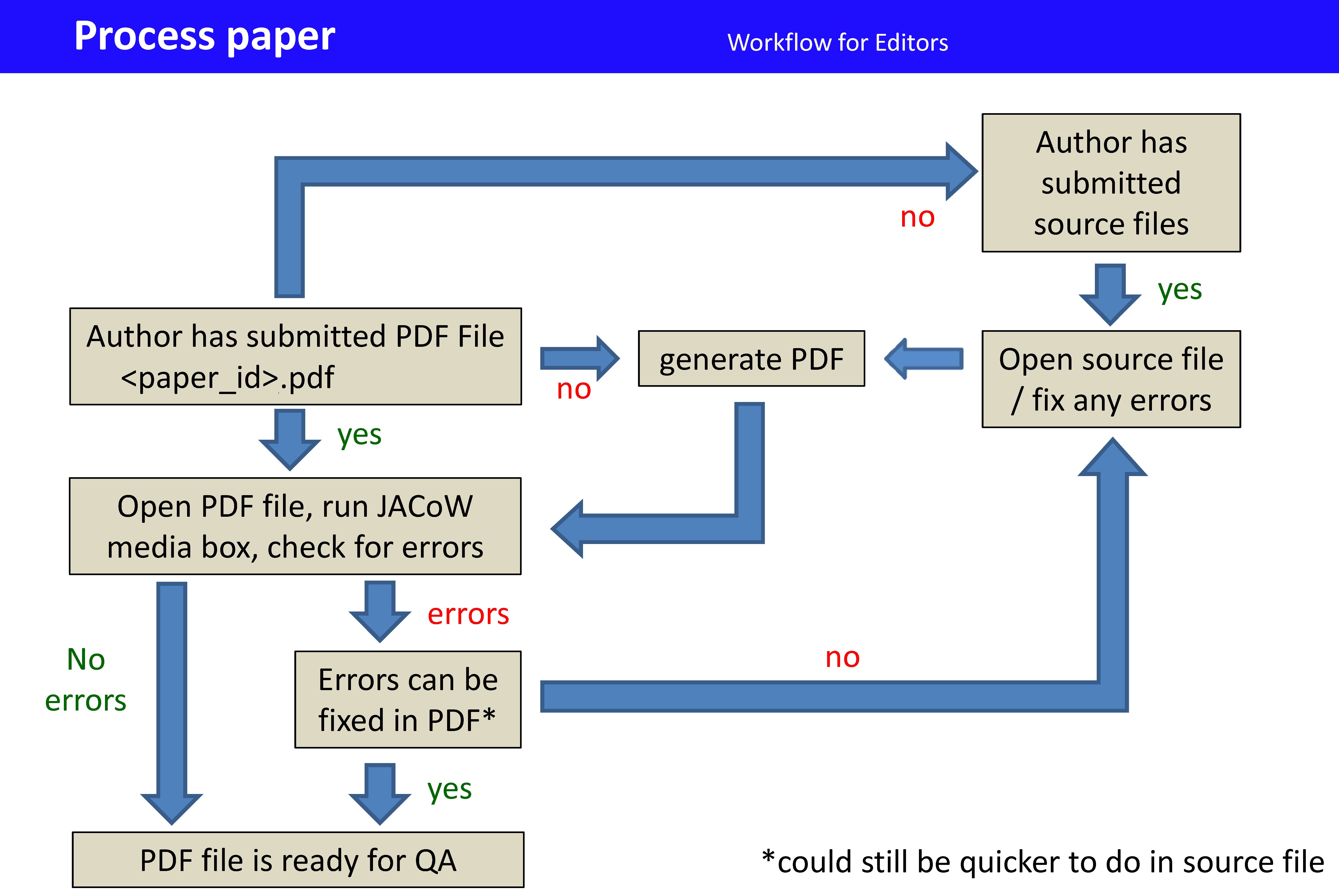

Here is a visual representation of the editing workflow:

Processing/Verifying the PDF File

See editing criteria in Quality Assurance Overview
Check hints for editing in Editing Recommendations

1. Check fonts
2. Check number of pages
3. Check readability and display time
4. Apply the JACoW Media Box (Crop)
5. Check margins
6. Check page size
7. Check formatting and Common Author Oversights
8. Fix the problems (if you estimate that it takes you more than one hour, send it back to the author → RED dot)

1. Check the fonts by opening »File → Document Info → Fonts« (shortcut »Ctrl + D + Fonts«).
   All fonts should be embedded (listed as "Embedded" or "Embedded Subset").
   Font types can be "Type 1", "TrueType", or "OpenType" with any kind of encoding.
   If the fonts have not been embedded, use Acrobat Preflight under »Tools → Print Production → Preflight → PDF fixups → Embed fonts« (shortcut »Ctrl + Shift + X + ...«).
   If there is a problem, go back to the document and try to change the fonts or, if it is a LaTeX paper and you are not a LaTeX expert, pass the paper to an expert to fix the font problem. When a WORD document has been repaired, make a new PDF file.
2. Check the number of pages: there are usually limits on the number of pages which vary according to the presentation type (more for oral presentations than for posters).
3. Check that all pages are readable and are displayed in a reasonable time (every page should display in less than about 5/N seconds, where N is the speed of the editor's computer in GHz).
4. Resize the document by using
   1) »Crop and Save« from the JACoW utils by opening »File → Crop and Save« or
   2) use the PitStop Action List called JACoW Media Box. Open the Action List Control Panel , locate the "JACoW Media Box" in the Local List and Run it.
5. Change to full page view and enable the grid (View → Show Form Grid or shortcut »Ctrl-U«), if not already on and check that all text and images are inside the margins.
   The text should now be inside the margins on all pages (~±1 mm). If part of the text or graphics is outside the box, the offending objects may be moved using the "Select Object" tool in the PitStop toolbar and then either hold down the CTRL key or click on the move tool , and then use the keyboard arrows to nudge objects into position.
6. Check the page size at the bottom of the window: it should be 595 x 792 pt. Move the mouse pointer to the lower left corner of the screen to make the page size appear.

• If the formatting is wrong, download the source file, edit the document, make a new PDF file and start over.
• Save the .PDF file using the Save As... command (»Ctrl-Shift-S«).
• Check that the name of this final PDF is the <paper_id>.PDF.
• If the PDF file has to be made or remade, even if the problem is trivial (e.g., wrong paper size) assign a YELLOW dot, upload the modified files, record your actions through the processing interface, add the tags that describe the problem best, and forward the paperwork for filing.
  Always be clear in your comments about processing so that others can understand what the problems are. The author will be invited to download the .PDF, check it, and set the paper to green if they approve the editor's version or come to the proceedings office to proofread the paper and let the staff know whether or not the paper is acceptable.
• If the problem is very complicated and you cannot fix it yourself, check to see whether another editor can fix it. If this is the case, ask the alternative editor to reassign the paper to himself.
• If it is estimated that a paper will take more than an hour to fix, assign a red dot, clearly explain the problem through the processing interface, and ask the author to fix at his earliest convenience (RED dot).

Print the dotted paper with the stamping tool in Acrobat & check visually Sometimes papers look good on screen and awful in print. Both media should be OK. If the PDF is not printable, proceed with the electronic steps only and then assign a red dot. Green dot Nothing is wrong No further action required Yellow dot Source file changed to fix problems Author should proofread Red dot Extensive work necessary, author should fix and resubmit Author should come to the proceedings office Brown dot Major screw-up, template not used Only for education in the editorial office Upload all processed files to Indico

Click here to get the precise steps to follow in Indico to judge (upload files and assign a dot).

• Place the paperwork in the appropriate place for filing.
• Click "Get Next Paper" to be assigned your next paper for processing.

QA - Quality Assurance procedure

By now, only the Scientific Secretariat can QA papers.

Click here to get precise instructions on how to perform this with Indico.

Process:

1. Take a printed paper that you did not process initially from the QA folder/bin
2. Download the PDF file from the server

There are two minimum requirements for a paper to be accepted for publication on JACoW:

• It meets the technical requirements (fonts, page size, performance, etc.).
• Its general appearance is close to the template (i.e., the content fits within the margins and the title is in uppercase letters; Fig./Figure, missing punctuation, typos, and other minor errors do not matter at this point).

Note that individual conferences or conference series might have additional QA requirements.

Then perform the following checks:

1. The title on the paper is the same as in the database (if not, correct it in Indico).
2. The number of pages is in the allowed range for that presentation type.
3. All pages of the document display in <5 seconds.
4. All pages of the document display without error.
5. Check the margins once more.
6. If you notice any changes in the author list, highlight them on the paper (as an indication for the people making the later checks). Alternatively, fixes to author list can be done at this stage.
7. Look carefully at the text and check equations and figures for strange or bad fonts.

If everything is OK

• Choose Approve QA and submit.
• Mark or write "QA OK", sign the paper, and then return all paperwork to the QA'd folder with the page with the dot on top.

If anything is NOT OK

• If the paper can be fixed in the PDF, fix the problem and make a comment in the database, upload the new PDF. Proceed with Approve QA as above.
• If you need to go back to the source, select Fail QA by sending the paper back to the original editor or reassigning it paper to yourself.
  Then fix it, note what you did in the database (as usual), and upload the new PDF file. This should result in a YELLOW dot again.
• If it is not fixable by you nor by the editor, select Fail QA then pass the paperwork to the editor themselves.
  The original editor, then, has to assign a red dot explaining all the problems in the usual way. The author will be notified by email as usual, so the all process can start again.
  Put the paper in the QA Failed bin.

Suggestions to Indico, to FEL2022+ organisers etc.

Please share your idea, comments, suggestions for a better organisation of such events, in particular about the use of Indico.

How-to:

Open your browser to the Telegra.ph free online service: https://telegra.ph/

Here you can create a rich text page (text, images, etc.) editable only from your browser.
At the end of your editing be sure to Publish it (use the top-right Publish button), copy this page's URL and send it to the Editor-in-chief.

We recommend to create one page only per person, but feel free to edit more than one to separate contexts (e.g., Indico, general organisation, Acrobat editing, LaTeX...). In this case you'll get one URL per page. Be sure to save them all!
